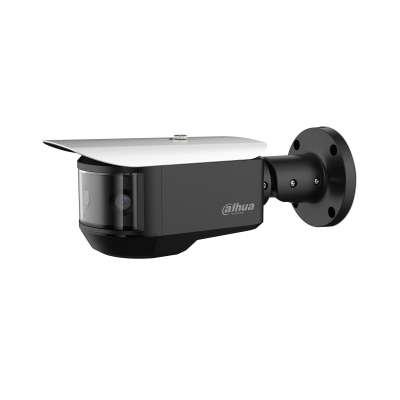

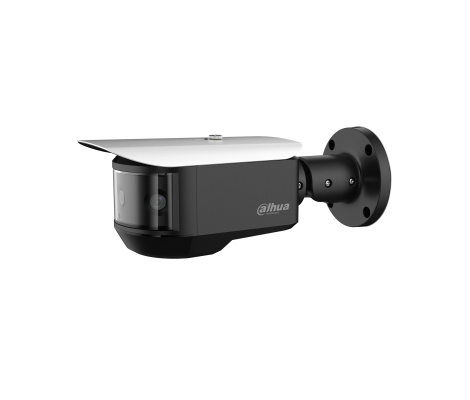

HAC-PFW3601-A180

Производство: КНР

3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera

В связи с высокой волатильностю курса валют актуальную цену уточняйте у наших менеджеров

> Three 1/2.8” 2Megapixel progressive scan CMOS
> 1 panoramic view &3 individual 2MP video output simultaneously
> Max. 15fps@4K,25fps@4M
> 120db true WDR,2D&3D NR
> HDCVI starlight technology
> Max.20m IR distance
> IP67&IK10 ingress protection
> Up to 500m transmission with RG59 coaxial cable

Camera

Image Sensor

Three 1/2.8" 2MP STARVISTM CMOS

Effective Pixels(Panorama)

4K(3840x832)/4M(2560x554)

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/4s~1/100,000s

NTSC:1/3s~1/100,000s

Minimum Illumination

0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on)

S/N Ratio

More than 65dB

IR Distance

20m

IR On/Off Control

Auto (ICR)/Color/B/W

IR LEDs

6

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm

Max Aperture

F1.8

Angle of View

H: 180°

Focus Control

N/A

Close Focus Distance

500mm

19.7''

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.



DORI

Definition

Distance

Detect

25px/m (8px/ft)

50m(163ft)

Observe

63px/m (19px/ft)

20m(65ft)

Recognize

125px/m (38px/ft)

10m(33ft)

Identify

250px/m (76px/ft)

5m(16ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

4K (3840X2160)/4MP(2560×1440)

Frame Rate

PAL:3840×2160@12.5fps,2560x1440@25fps;

NTSC:3840×2160@15fps,2560x1440@25fps;

Video Output

1-channel BNC HDCVI panoramic video output & 3-channels BNC 2MP HDCVI video output

Day/Night

Auto (Electronic) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Alarm I/O

2/1

Audio Interface

1-channel audio in(JACK)

Test interface

1-channel 2-pin CVBS video output

Upgrade Interface

1-channel 4-pin USB input

Code switcher

1 physical code switch(switch the preset video source)

Menu set

1 Five-direction button

Eelectrical

Power Supply

12V DC ±25%

Power Consumption

22W

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67&IK10

Construction

Casing

Aluminium

Dimensions

286mm x 119mmx 106mm(11.26"×4.68"×4.19")

Net Weight

2.05kg (4.5lb)

Gross Weight

2.43kg (5.36lb)
